Pipe Clamps for Steel and GRE Pipes
Asia Bolts Industries LLC manufactures pipe clamps and U-clamps for steel and GRE (glass-reinforced epoxy) pipes from Dubai Investment Park, UAE. Clamps are made to your drawing, and our team can provide technical support on part development. Heavy-duty protective coating systems up to 310 µm DFT are available for harsh environments.
Our Clamp Range

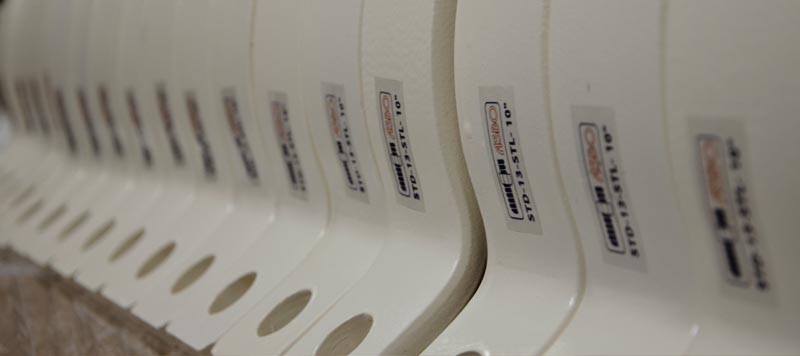

Pipe Clamps
Two-bolt and split pipe clamps in mild steel, supplied with machine bolts and nuts. Available in hot dip galvanized, electro-galvanized or epoxy painted finish.
U-Clamps (U-Bolt Clamps)
U-bolt pattern clamps for pipe supports, with matching plates, nuts and washers — see our U-bolts page for the full size range.
Custom Clamps to Drawing
Clamps bent and formed to customer drawings in any profile — with technical support on part development. Send us your drawing.
Technical Specifications
| Specification | Details |
|---|---|
| Clamp material | Mild steel S275JR (EN 10025-2) |
| Fasteners | Grade 4.6 machine bolts with nuts |
| Suitable for | Steel pipes to ASTM sizes and GRE pipes |
| Customization | Made to customer drawings, with technical support on part development |
| Finish | Hot dip galvanized · Electro-galvanized · Epoxy painting |
| Pipe size range | Made to pipe OD on request — send your pipe size for the exact range, strap width and thickness |
Note: Clamps are cut, bent and drilled to order, so dimensions follow each project drawing. Contact us with your pipe OD and we will confirm sizes, strap width and thickness quickly.
Heavy-Duty Coating System
| Step | Coat | Thickness |
|---|---|---|
| — | Surface preparation — garnet blasting | 45–55 µm profile |
| 1 | Epoxy polyamide zinc phosphate primer | 60 µm |
| 2 | Iron oxide polyamide epoxy | 100 µm |
| 3 | High build polyamide epoxy | 100 µm |
| 4 | Polyurethane | 50 µm |
| Total | Complete multi-coat protective system | 310 µm DFT |
Hot dip galvanized
Electro-galvanized
Epoxy painting
310 µm DFT multi-coat system
Clamp Dimensions
| Symbol | What it shows | Value |
|---|---|---|
| A* | Clamp bore — pipe OD plus 4 mm (2 mm isolator per side) | Made to pipe OD |
| R | Inside bend radius of the strap | 1.5 × strap thickness (typ.) |
| C / D / E | Bolt-hole spacing, edge distance and overall length | Per pipe size / drawing |
| Bolt holes | Clearance holes for machine bolts | 2 holes |
| Isolator | Isolator between strap and pipe | 2 mm thick |
| Hardware | Machine bolt with nut | Grade 4.6 |
How to Order
To quote quickly, please send:
- Pipe type — steel or GRE
- Pipe OD or nominal size
- Clamp strap width and thickness
- Bolt size
- Finish or coating system
- Quantity
- A drawing, if you have one
Request a Quote
Phone: +971 4 885 5861 / +971 4 885 5862
Fax: +971 4 885 5860
Email: sales@asia-bolt.com
Address: Asia Bolts Industries LLC, P.O. Box 60495, Dubai Investment Park 2 (DIP 2), Dubai, United Arab Emirates
Need pipe clamps made to your drawing?
Send us your pipe type, size and finish requirement — our engineering team will confirm dimensions, coating and lead time with a fast quotation.
