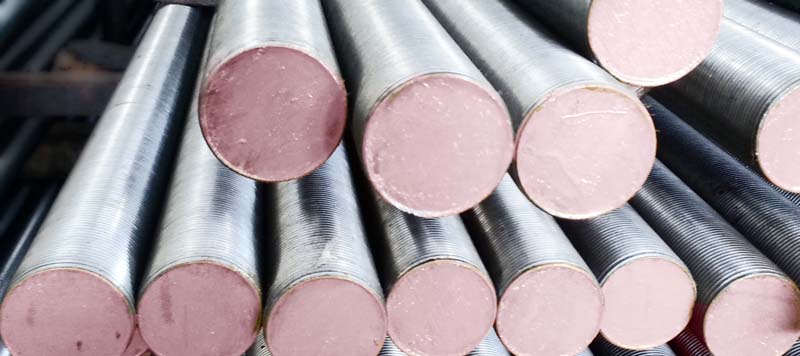

Threaded rods stocked in bundles at our Dubai facility threaded rod bundles
Stainless steel SS316 threaded bar SS316 threaded bar
Threaded bar cut to customer length threaded bar cut to length
Electro zinc plated threaded rod zinc plated threaded rod
Continuous thread along a full length threaded rod fully threaded rod close-up
Threaded rod with matching hex nuts and washers threaded rod with nut and washer
ASTM A320 L7 threaded bar A320 L7 threaded bar
Class 10.9 metric threaded rod, black finish class 10.9 metric threaded rod

Our threaded rod range — carbon, alloy, stainless, duplex and nickel alloys, cut to your length.

Asia Bolts Industries LLC manufactures and supplies threaded rods, also called threaded bars or all thread, from our facility in Dubai Investment Park. We serve contractors, EPC companies, fabricators and plant owners across the UAE, Saudi Arabia, Qatar, Kuwait, Oman and Bahrain.

Our threaded rods are available in carbon, alloy, stainless, duplex and nickel alloy materials, from M6 to M150 (1/4" to 6"). We cut them to your length and supply them with matching nuts and washers. Every order includes material test certificates and heat-number traceability.

What Are Threaded Rods?

A threaded rod is a straight bar with a continuous thread along its entire length and no head. It is used with nuts and washers for anchoring, hanging, clamping and tensioning. Typical uses include pipe supports, cable trays, HVAC and MEP hangers, structural connections, formwork, post-tensioning and equipment fixing.

Threaded Rod vs Stud Bolt: Which Do You Need?

The two are similar, but the specification differs:

Threaded Rods

General-purpose, supplied in standard or cut lengths, and used for structural, support and construction work.

Stud Bolts

Made to flange-bolting standards (such as ASTM A193 / A320), with matched nuts for pressure-containing joints in oil, gas and petrochemical plants.

For flanged joints, see our Stud Bolts page.

Threaded Rod Materials and Grades

Carbon and Alloy Steel

Grade Specification Typical Use
A36 / A307 Gr. A & B ASTM A36, A307 General construction, supports, hangers
B7 ASTM A193 High-strength, high-temperature and pressure service
B7M ASTM A193 Sour service (H₂S environments)
B16 ASTM A193 Higher-temperature service
L7 / L7M / L43 ASTM A320 Low-temperature service
A453 Gr. 660 A/B ASTM A453 High-temperature, austenitic bolting
20CrMoVTiB4-10 DIN High-temperature bolting
4.6, 4.8, 5.8, 8.8, 10.9, 12.9 ISO 898-1 Metric structural and general engineering

Stainless Steel, Duplex and Nickel Alloys

Grade Specification Typical Use
SS 304 / 304L ASTM A193 B8 Cl. 1 & 2 General corrosion resistance
SS 316 / 316L ASTM A193 B8M Cl. 1 & 2 Marine, chemical, desalination
Super duplex UNS S32750 / S32760 Offshore, seawater, high-chloride service
Monel 400 Nickel-copper alloy Seawater and acidic media
Incoloy 925 Nickel-iron-chromium alloy Sour gas and oilfield service

Typical Mechanical Properties

Grade Min. Tensile Min. Yield
A193 B7 (up to 2½") 125 ksi (860 MPa) 105 ksi (725 MPa)
A193 B7M 100 ksi (690 MPa) 80 ksi (550 MPa)
A193 B8 / B8M Cl. 1 75 ksi (515 MPa) 30 ksi (205 MPa)
ISO 4.6 / 8.8 / 10.9 / 12.9 400 / 800 / 1040 / 1220 MPa See ISO 898-1
Values are typical minimums and depend on size. They are a quick guide only, so always confirm against the applicable standard or project specification.

Choosing the Right Grade

Application Recommended Choice
General construction, MEP supports A36, A307 Gr. A, or ISO 4.6 / 5.8
High-strength structural fixing 8.8, 10.9 or A193 B7
High temperature or high pressure A193 B7 / B16
Sour service A193 B7M
Low temperature A320 L7 / L7M / L43
Coastal, marine, chemical SS 316 or super duplex
Seawater and aggressive media Super duplex, Monel 400, Incoloy 925

Send us your specification and we will confirm the right grade. For special threads, bends or assemblies, see our custom fasteners and anchor bolts ranges.

Technical Specifications

Standards ASTM, ASME, BS, DIN, JIS, EN, ISO
Materials Carbon steel, mild steel, alloy steel, stainless steel, duplex, nickel alloys
Diameter range M6 to M150 and 1/4" to 6"
Threads ASME B1.1 Class 2A (UNC / UNF / 8UN imperial); ASME B1.13M 6g (metric coarse and fine)
Lengths Standard stock lengths, or cut to size
Options Left-hand threads, partial threads, special pitches and double-end studs on request
Documentation Material Test Certificates (EN 10204 3.1; 3.2 on request)

Coatings and Finishes

Self-Color / Black Hot-Dip Galvanized Electro Zinc Plating Zinc-Nickel Plating Zinc Bichromate Tectyl Molykote Zinc Flake
Engineering notes: for hot-dip galvanized rods, nuts must be tapped oversize to allow for the coating. High-strength grades (10.9, 12.9, B7) need hydrogen-embrittlement precautions with plated finishes.

Matching Nuts and Washers

We supply matching nuts and washers with every order:

Rod Grade Matching Nut
A193 B7 ASTM A194 Gr. 2H
A193 B7M ASTM A194 Gr. 2HM
A193 B8 / B8M ASTM A194 Gr. 8 / 8M
A307 / A36 ASTM A563 Gr. A
ISO 8.8 / 10.9 ISO 898-2 Class 8 / 10

Stainless steel threads can gall (seize) during tightening, so we recommend anti-seize lubricant such as Molykote.

Industries We Serve

Oil and Gas, Refineries & Petrochemical Plants
Power Generation & Desalination
Construction, MEP & Infrastructure
Structural Steel Fabrication
Marine & Offshore
Industrial Equipment Installation

Supplying Across the GCC

From our Dubai facility we deliver to project sites across:

UAE — Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah Saudi Arabia — Riyadh, Jubail, Dammam, Yanbu Qatar — Doha, Ras Laffan Kuwait Oman — Sohar, Duqm, Muscat Bahrain

Why Choose Asia Bolts?

Manufacturer, Not Just a Trader

Control over quality, lead time and custom requirements.

Wide Material Range

From mild steel to super duplex under one roof.

In-House Testing

Testing lab and quality control on site.

Cut-to-Length & Custom Threading

Done to your drawing.

Full Traceability

With every order.

Complete Packages

Rods, nuts and washers supplied together.

Frequently Asked Questions

What is the difference between a threaded rod, threaded bar and all thread?

They are the same product. “All thread” is a common trade term for a fully threaded rod.

What does A193 B7 threaded rod mean?

It is a chromium-molybdenum alloy steel rod made to ASTM A193, heat-treated for high strength and normally used with A194 2H nuts for high-pressure and high-temperature service.

Which material is best for outdoor or coastal use?

Hot-dip galvanized carbon steel works for most outdoor use. For marine or chemical exposure, SS 316 or duplex stainless steel is better.

Can you cut threaded rods to specific lengths?

Yes. We supply stock lengths and cut to your required size, with custom thread lengths on request.

What is the difference between B7 and B7M?

B7 is the standard high-strength grade. B7M has a lower hardness limit for sour service, where resistance to sulphide stress cracking is needed.

Do you supply certificates?

Yes. Material test certificates and traceability documents come with every order.

Do you deliver outside the UAE?

Yes. We supply Saudi Arabia, Qatar, Kuwait, Oman and Bahrain.

Request a Quote

Send us your grade, diameter, length, quantity and coating, and our team will respond quickly with a competitive quote.
